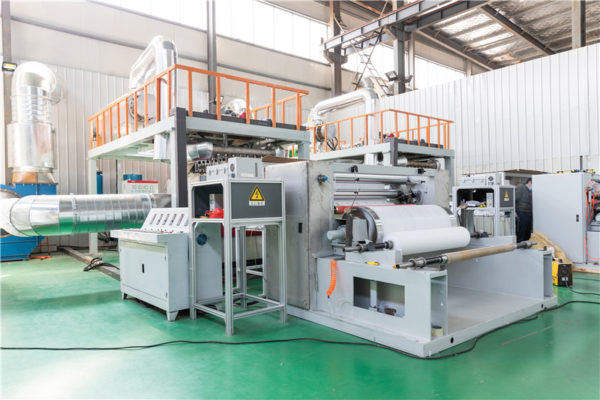

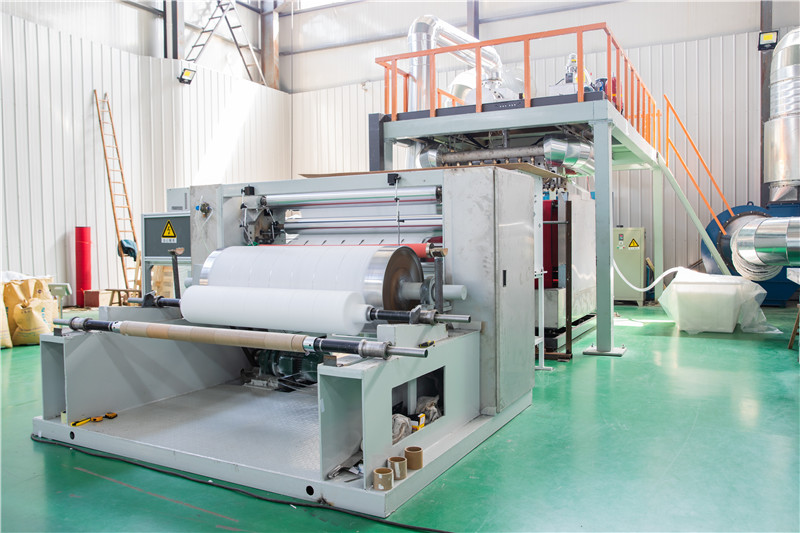

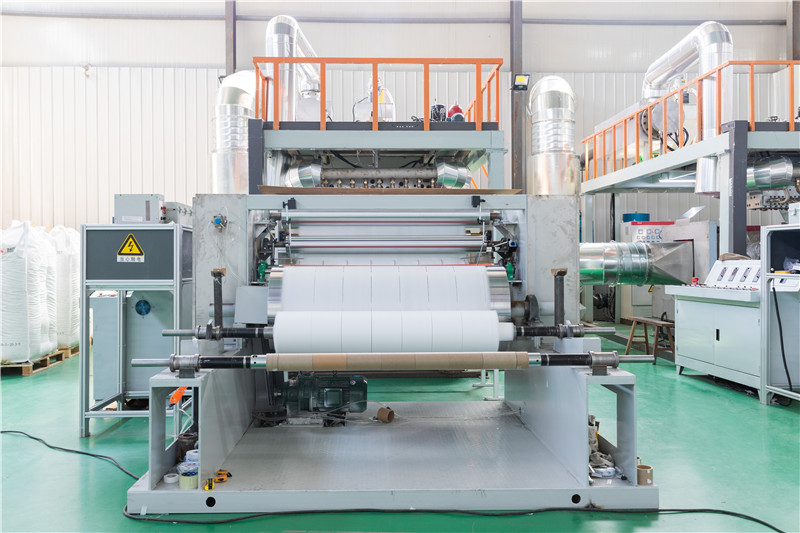

PP Meltblown Nonwoven Fabric Making Machine

Model No.

GL-M

Equipment size

18x10x6 m

Speed

150 m/min

Gram Weight

5-200 g/m2

Product Description

Guanlong has been focusing on nonwoven fabric making Lines for 15 years. We combine international advanced technology and customers’ production need, provider various holistic solutions for customers. At present, we have manufactured hundreds of full-automatic production lines for customers all over the world.

There are the features of Meltblown Nonwoven Machine:

1. Meltblown Nonwoven Machine makes superfine fiber nonwoven fabrics, adopts advanced world famous brand components in pneumatic parts, electric parts, and operation parts. Both of the quality and the energy consumption keeps approximate to the global leading brand, while the investment is far blowing.
2. Meltblown Nonwoven Machine is single-beam, the raw materials go through melting and spinning, form fiber web directly before the fabrics come out.
3. Based on the characteristics of excellent filtration and isolation of the fabrics produced by Meltblown Nonwoven Machine, they are widely used in environmental protection for filtrating & oil-absorbing and medical materials such as mask, protection suit and hygiene products such as sanitary pad, diaper. The fabrics also have good insulation, so the fabrics also widely applied to industrial, agriculture, clothing even deadening materials.

The main specifications of Meltblown Nonwoven Machine:

Model No.GL-M
M(product width)1600 mm2400 mm3200 mm
Equipment size18x10x6 m18x10x6 m18x10x6 m
Speed150 m/min150 m/min150 m/min
Gram Weight5-200 g/m25-200 g/m25-200 g/m2
Yield(Products according to 40 g/m2)3-6 T/DAY4-8 T/DAY5-10 T/DAY



ModelEffective widthDaily capacitySpeedSpinning systemGSM RangeMachine dimension
Length*Width*Height
HG-1600M1600MM2000Kg100M/MinMeltblown10-20015*8*8 meter
HG-2400M2400MM3000Kg15*10*8 meter
HG-3200M3200MM4000Kg15*12*8 meter
HG-1600S1600MM5000Kg200M/MinSpunbond10-20020*8*11 meter
HG-2400S2400MM7000Kg(S)20*11*11meter
HG-3200S3200MM10000Kg20*15*11meter
HG-1600SS1600MM9000Kg350M/MinSpunbond8-15035*10*11meter
HG-2400SS2400MM13000Kg(SS)35*12*11meter
HG-3200SS3200MM16000Kg35*15*11meter
HG-1600SSS1600MM12000Kg400M/MinSpunbond8-10040*10*11meter
HG-2400SSS2400MM16000Kg(SSS)40*12*11meter
HG-3200SSS3200MM23000Kg40*15*11meter
HG-1600SMS1600MM10000Kg400M/MinSpunbond/8-8040*15*11meter
HG-2400SMS2400MM14000KgMeltblown/40*18*11meter
HG-3200SMS3200MM18000KgSpunbond/40*25*11meter
HG-1600SMMS1600MM12000Kg500M/MinSpunbond8-8045*15*11meter
Meltblown
HG-2400SMMS2400MM17000KgMeltblown45*18*11meter
HG-3200SMMS3200MM23000KgSpunbond45*25*11meter
